Machine features

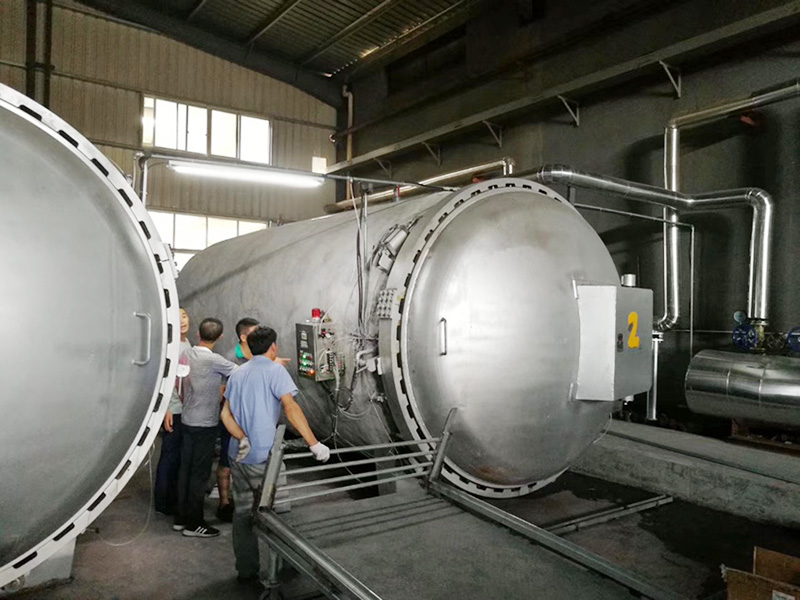

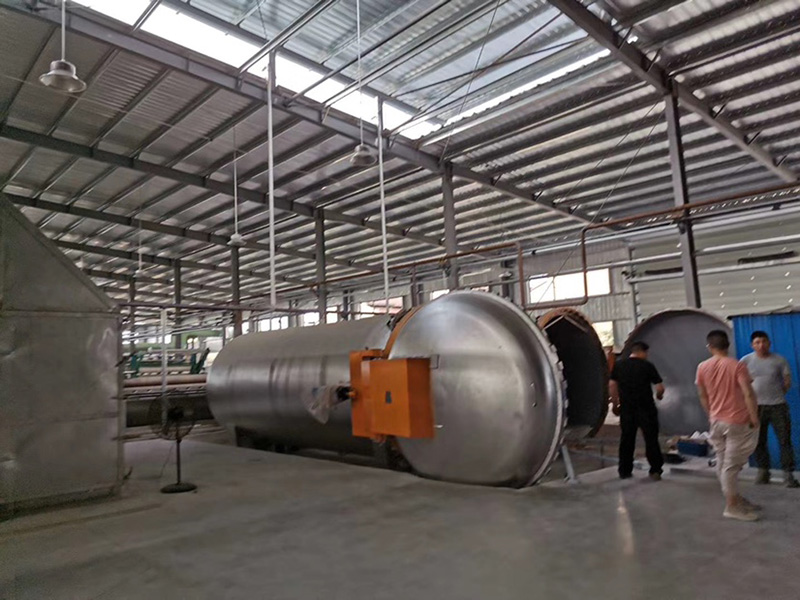

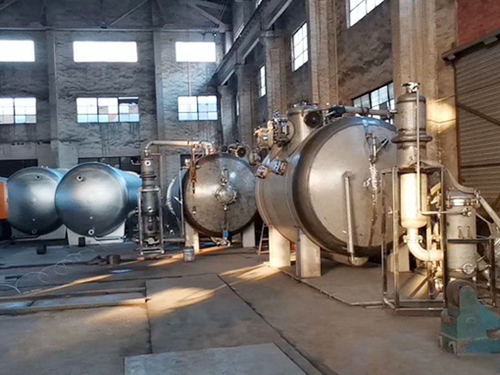

High temperature steaming pot is suitable for steaming after vat dyes of pure cotton, chemical fiber and blended fabrics and color development after printing; It is also suitable for continuous yarn with weaving conditions • it is shaped after well closing and twisting to obtain a balanced non twisted yarn.

Machine parameters
1. Gland mode: gear rack safety interlock manual cover opening.
2. Sealing form: air seal (compressed air).
3. Heating mode: direct steam heating (in addition, it can be adjusted according to user requirements).
(add indirect heating).
4. Yarn (cloth) feeding mode
① Use a special trolley to push along the special track in the equipment.
② The equipment is designed to be mobile (yarn frame) and operated by people at 20°C under normal temperature.
5. Main technical parameters in the pot
① Design pressure: 0.44Mpa
② Design temperature: 140 ℃
③ Maximum working pressure: 0.4MPa
④ Operating temperature: 135℃
6. Main technical parameters of heat exchange tube (indirect heating)
① Design pressure: 0.53mpa
② Design temperature: 160 ℃
③ Maximum working pressure: 485MPa
④ Operating temperature: 150℃
