Application

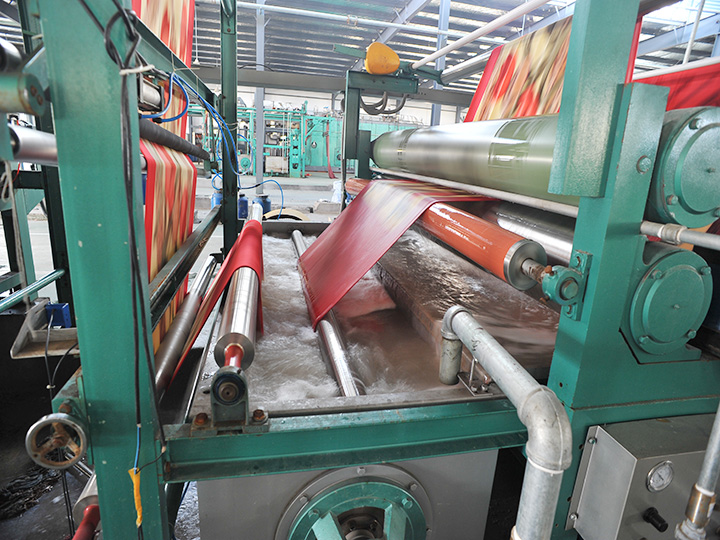

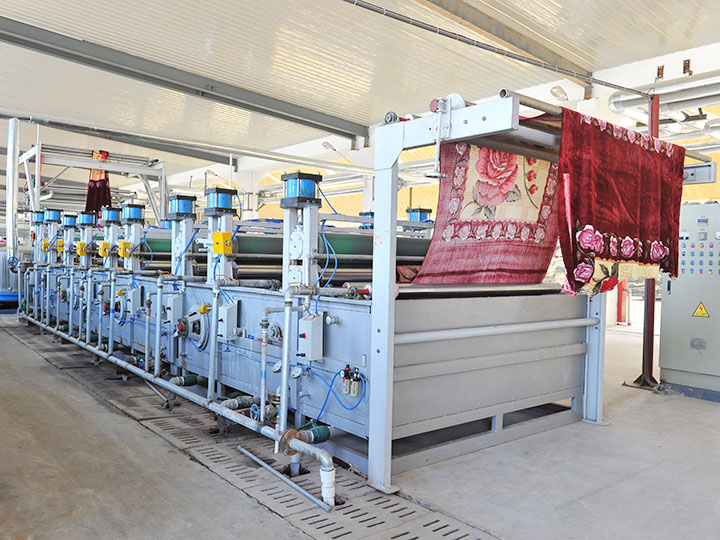

This machine is used for washing blankets, carpets, coral velvet fabrics, and cotton, polyester, blended fabrics.
Technical characteristics
1. Building block combination, machine process can be combined arbitrarily according to different product and process requirements.
2. Nominal width: 1600-3200mm according to user requirements.
3. Water washing unit: 6 tanks, 7 tanks, 8 tanks, 9 tanks, 10 tanks, etc.
4. AC frequency conversion synchronous transmission, mechanical speed: 10-30m / min, set according to the process.
5. Drum washing machine: the plum blossom drum is used to form a strong water flow at 300 rpm, which is sprayed from inside to outside through the rotating cage for effective and thorough washing
Clean the impurities such as dyes and additives inside the fiber. After washing, the fluffy and soft hair will not pour.
6. two roller rolling car: steel roller, rubber roller each (diameter φ 300mm or 220mm), pneumatic pressure, rubber roller for nitrile rubber, stable structure, smooth operation.
7. heavy rolling: φ 400 NBR roller, cylinder side pressure, lever principle increases pressure, pressure up to 13-18T. High rolling residual rate, effectively saving softener.
8. The cloth guide roller of the whole machine adopts seamless steel pipe coating type, with good rigidity, high tensile strength and no wrinkle of the blanket.
9. The elastic frame adopts heavy hammer adjustment, which is convenient, flexible and stable.
10. The whole machine has compact structure, counter current grid by grid and effective section
