High Temperature Sample Dyeing Machine

Product Description

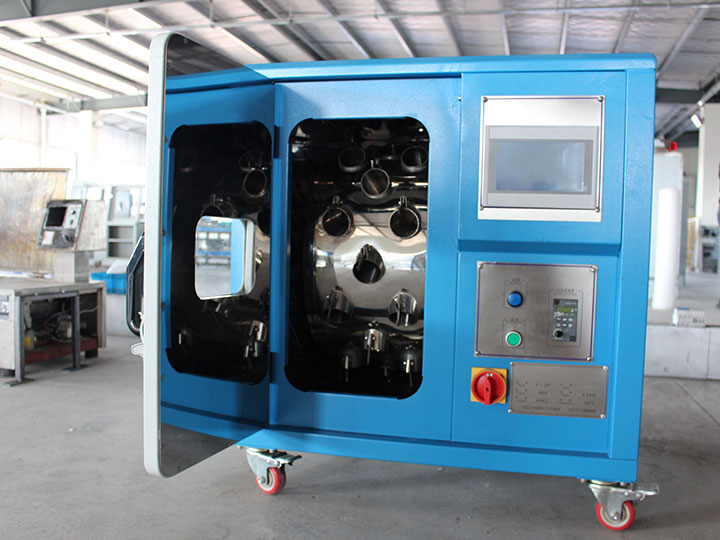

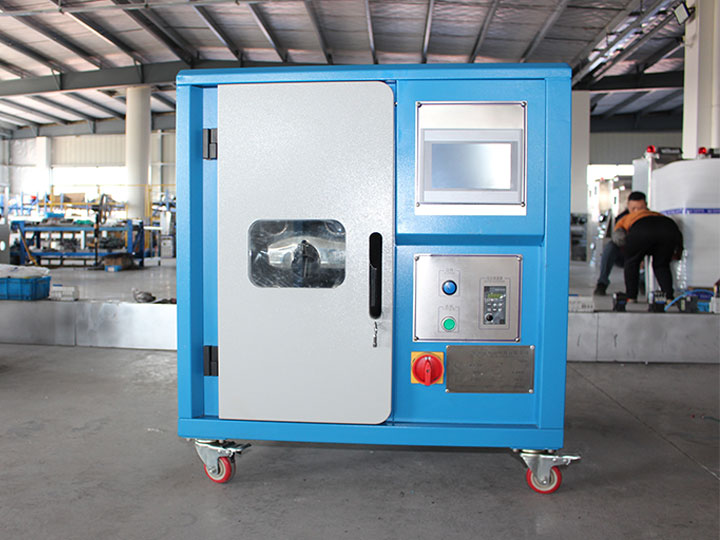

The Sand High Temperature Sample Dyeing Machine is a state-of-the-art piece of equipment designed to provide high quality results for your dyeing needs. With its advanced features and user-friendly interface, this machine is sure to revolutionize the way you dye.

Specification
1.Quantity of steel cups: 24 cups, 12 cups or 8 cups with special specifications.
2.Steel cup material:316L one-time stretch molding.
3.Steel cup size: 200CC/350CC/420CC
4.Steel cup special specifications: 800CC/1000CC/6000CC
5.Rotation speed:10-50 times
6. Temperature control range: room temperature to 140 degrees
7.Temperature control accuracy:±1 degree
8.Heating rate:0.2-5 degrees
9.Cooling method: air cooling
10.Heating medium: metal sand conducts heat
11.Power supply:380V
12.Power: 4.8KW
13.Machine size: Height 118, width 75, depth 78CM

Feature
1.Unique PLC control screen.Self-developed temperature module to control the temperature of the sand body and the cup.Installation of programmable computer, a variety of expressions, real-time monitoring of laboratory working status.
2.The use of emery heating method, no smoke pollution, no glycerol loss, small power, and thermal insulation, constant temperature effect is good, but also can save a huge amount of glycerol and power costs.
3.The use of inverter control, automatic positive and negative rotation device and can adjust the speed of the turntable, better with the operation of the field of large cargo process, rotating the liquid in the cup fluctuates back and forth, so that the dyeing rate is more uniform, suitable for all kinds of raw materials dyeing, can get the most flat and evenly dyed samples.
4.In order to adapt to various fabrics and dyeing processing methods, we use 200ml, 350ml, 420ml dyeing cups as low bath and large bath ratio dyeing. Can be halfway up and down the cylinder, can do constant temperature curve heating.

Advantage
1. Operates at high temperatures, making it ideal for dyeing fabrics that require more heat. This means you can achieve stunning results using a wider range of materials than ever before without worrying about damaging the fabric.
2. Accuracy and precision. With its advanced control system, you can easily set the temperature and dyeing time to the precise specifications you need, ensuring you get perfect results every time. This level of precision is simply not possible with other dyeing machines on the market.
3. Easy to use, even for those new to the dyeing process. Its intuitive interface and simple controls make it easy to get started and get amazing results from the start.

Product shipping configuration:

Serial number	Product name	Model	Quantity
1	Machine	JL-2-24P	A set
2	steel cup	420CC	24
3	Cup Mat	420CC	24
4	heat-resistant gloves		1
5	Cup and plate	12-hole	2
6	specification		1
